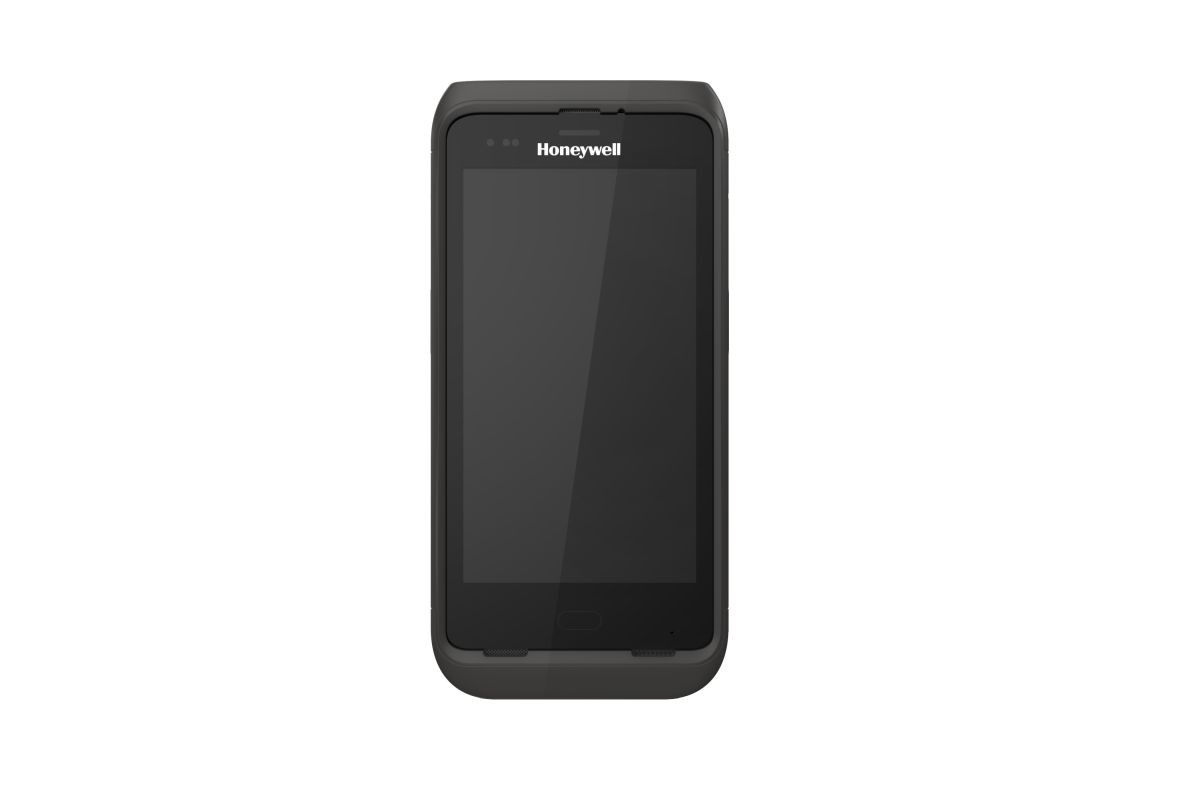

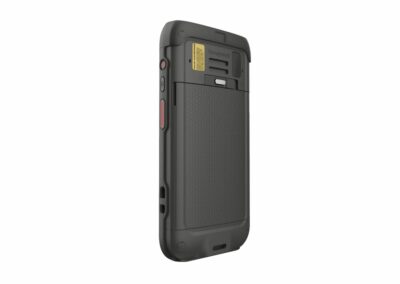

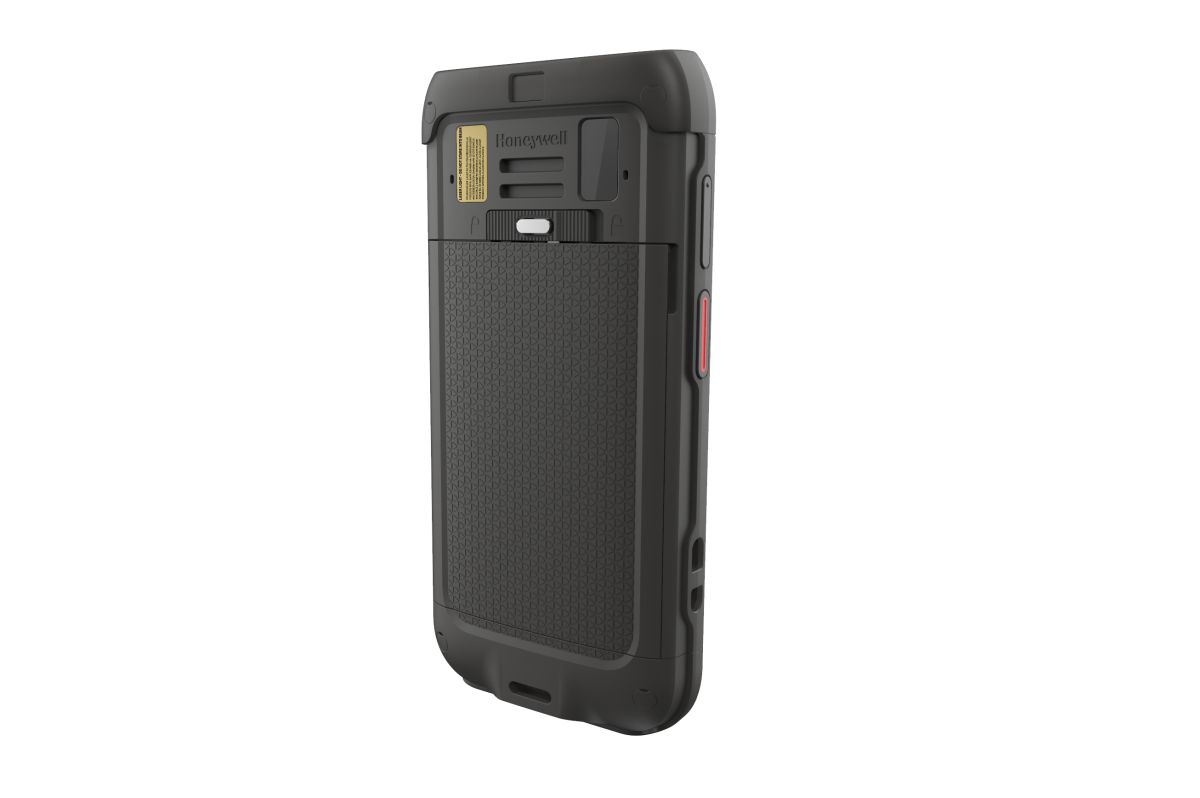

Honeywell CT45 CT45XP Mobile Computer

Honeywell CT45 CT45XP Mobile Computers

Honeywell CT45 CT45XP mobile computers, built on the Mobility Edge platform, are rugged, all-purpose productivity tools ensuring ultra-reliable performance, data connectivity and communications for front-line mobile workers in retail, logistics and fieldwork.

The CT45 product family offers an integrated, repeatable, and scalable approach based on a common hardware and software Mobility Edge™ platform – achieving enterprise stability and security via incorporating a powerful Qualcomm processor that is guaranteed to support from Android 11® throughout Android 13, Android 14 and 15 are committed subject to feasibility.

The CT45 XP leverages the latest Wi-Fi 6 technology to facilitate access to essential information with low latency, even in a highly dense connected environment. Delivery workers can now efficiently access the network outside of the 4 walls using 4G-LTE advanced technology, keeping mobile frontline workers always connected to crucial information to place orders, check stock, look up order status, or scan items anywhere and anytime.

Operation downtime results in revenue loss. The CT45 product family enables mobile workers to work while on the road, in the rain, or in a dusty warehouse. Designed to withstand challenging environments with no adverse damage or compromise to device integrity or sacrifice to ergonomic benefits. Built on a sleek design with enhancement on superior ruggedness, the CT45 product family delivers a compact device that mobile workers can carry comfortably throughout the shift and which can endure accidental drops and falls.

Fully integrated with the Honeywell Operational Intelligence solution, available with FlexRange™ and 7th Generation scan options, an 8-megapixel front facing camera, and a full suite of booted accessories, the CT45 product family extends the usability of an enterprise class device by offering a converged solution to cater to the demand of cycle counting, on-demand delivery, asset management etc. Coupled with a 1920*1080p full high-definition display, it significantly increases the user experience.

Honeywell CT45 CT45XP Specifications

FEATURES


  • Camera
  • 8-megapixel front-facing camera
  • 13-megapixel rear camera

DIMENSIONS


  • Overall Dimensions
  • 163 mm x 79 mm x 19.2 mm

SCANNING SPECIFICATIONS


  • Decode Capability
  • Honeywell FlexRange, Honeywell S0703 (1D/2D barcode symbologies), Honeywell SDKs for Android

NETWORK


  • Bluetooth Specifications
  • 2nd BLE Available on CT45 XP only
  • V5.1 Bluetooth and BLE
  • WLAN Specifications
  • All other configurations: IEEE 802.11 a/b/g/n/ac
  • WLAN: Wi-Fi certified
  • WLAN Security: OPEN, WEP, WPA/WPA2/WPA3 (Personal and Enterprise)
  • All SKUs: 802.11 d/e/h/i/k/r/v/u/w/mc
  • CT45 XP WLAN: IEEE 802.11 a/b/g/n/ac/ax and 2*2 MU-MIMO
  • RFID Specifications
  • Integrated NFC reader, compliant with ISO/IEC 14443 A, ISO/IEC 14443 B, ISO/IEC 15693 (ICode), MIFARE 1K / 4K, MIFARE DESFire, Sony FeliCa, ISO/IEC 18092 (Type F)
  • GPS Specifications
  • GPS Supported Protocols: Simultaneous GNSS Receiver Support for GPS, GLONASS, Galileo, and Beidou, Assisted GPS
  • WWAN Specifications
  • LTE – Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 19, 20, 25, 26, 28, 29, 30, 38, 39, 40, 41, 66, 71
  • WWAN Radio (ATT/VZW/SPRINT/ TMO/NA/EU)
  • UMTS/HSPA+ (3G) – Bands 1, 2, 4, 5, 6, 8, 9, 19
  • GSM: 850, 900, 1800, 1900 (Quad Bands)
  • AT&T FirstNet Compliant
  • SIM: eSIM and NanoSIM (CT45XP) or 2 Nano SIMs (CT45)
  • LTE Advanced Support
  • Up to 75 Mbps CAT5 LTE uplink
  • Up to 390 Mbps CAT13 LTE downlink

SOFTWARE & FIRMWARE


  • Operating System
  • Each Android version guaranteed from Android 11 to at least 13, committed support for Android 14 and Android 15, pending feasibility

MEMORY & DATA


  • Memory
  • User-accessible microSD card up to 512 GB (SDXC/SDHC/ SDIO-compliant)
  • 6 GB DDR4x RAM, 64 GB UFS Flash (CT45XP); 4 GB DDR4x RAM, 64 GB UFS Flash (CT45)

HARDWARE


  • Processor
  • Qualcomm QCS4290/QCM4290 octa-core, 2.0GHz
  • Display Resolution
  • Full High Definition (1920 x 1080) (CT45XP); High-Definition (1280 x 720) (CT45)
  • Display Size
  • 12.7 cm (5.0 in)

ELECTRICAL


  • Battery Type
  • Li-Ion, 3.85 V, 4020 mAh; smart battery with integrated diagnostic tools
  • Quick Charge 3.0 compliant; Less than 3 hours to be fully charged.

ENVIRONMENTAL


  • Operating Temperature
  • -20°C to +50°C (-4°F to +122°F)
  • Storage Temperature Range
  • -30°C to +70°C (-22°F to +158°F)
  • Operating Humidity
  • 5% to 95% (non-condensing)

STANDARDS & APPROVALS


  • Drop Specifications
  • Multiple 1.8 m (6 ft) drops to concrete at -20°C to +50°C (-4°F to +122°F) per MIL-STD-810H; multiple 2.4 m (8 ft) drops to concrete with protective boot at -20°C to +50°C (-4°F to +122°F) per MIL-STD-810H
  • Tumble Specifications
  • Exceeds 1,500 times at 1m (3.28 ft) per IEC 60068-2-32 specification

SERVICE TERMS


  • Warranty Duration
  • One-year factory warranty

Industry Use

Warehousing

Manufacturing

Transportation

hospitality

Hospitality

Retail

field mobility

Field Mobility

Request a Repair

If you have a problem with your Honeywell CT45 CT45XP then pleaase use the link below to get an online RMA

Request a Quote

Do you need a number of terminals. Let us know the hardware configuration and we’ll get back to as soon as possible.

14 + 6 =

Request Help

If you need any technical assistance regarding your terminals then please dont hesitate to contact us.

8 + 12 =

Knowledge Base – Honeywell CT45 CT45XP

Soft Reset - Warm Boot

Honeywell CT45 CT45XP Soft Reset – Warm Boot

You may need to reboot the mobile computer to correct conditions where an application stops responding to the system.

  1. Save your files and close any applications.
  2. Press and hold the Power button until the options menu appears.
  3. Tap Power > Restart.
  4. The device reboots.
Hard Reset - Cold Boot

Honeywell CT45 CT45XP Hard Reset – Cold Boot

CAUTION: Performing a hard reset with a microSD card installed in the device may cause damage or data corruption to the microSD card. All un-saved data is lost after performing a hard reset.

To restart the computer if the touch panel display is unresponsive:


• Press and hold the Power button for approximately 8 seconds until the computer restarts.

Enterprise Reset

Honeywell CT45 CT45XP  Enterprise Reset

You can perform an Enterprise data reset if a reboot did not improve the condition and all other troubleshooting methods have not been resolved the issue. This method provides a clean configuration for troubleshooting by erasing all the data from the internal shared storage location on the mobile computer. Data is not erased from the IPSM card location.

Caution: An Enterprise data reset results in data loss, only perform this procedure if all other recovery methods have failed. All personal content is erased including, but not limited to emails, pictures, contacts, Google account information, system settings, and application settings.

Note: This method of recovery may not be available if your system administrator has set policies to prevent the reset use.

Before you begin

  • If you recently reset your Google Account password, wait 24 hours before performing an Enterprise data reset.
  • Make sure you have your screen lock password, PIN, or pattern if you activated one. You will need this to reset the mobile computer.
  • If you have a Google Account, backup your data and settings to your Google Account so you can restore them if required.
  • Connect the computer to an external power source or make sure you have a full battery charge.
  • Make sure you have an Internet connection.

Enterprise Data Reset the Mobile Computer

  1. Swipe up from the bottom of the home screen to access all applications.
  2. Select Settings > System > Reset Options.
  3. Tap Enterprise Data Reset.
  4. Tap Erase All Data.
  5. If prompted, type your screen lock security patter, PIN, or password, and tap Next.
  6. Tap Erase Everything. A message appears informing you an Enterprise Data Reset is being performed.

Terminal will reboot.

Factory Reset

Honeywell CT45 CT45XP Factory Reset

A full factory reset should only be performed if you have exhausted all other troubleshooting options. This method reverts the mobile computer back to the factory state by erasing all data in Internal shared storage and the IPSM Card storage locations on the mobile computer.

Caution: A full factory reset results in data loss, only perform this procedure if all other recovery methods have failed and have no other option. All personal content is erased including, but not limited to emails, pictures, contacts, Google account information, system settings, and application settings.

Note: This method of recovery may not be available if your system administrator has set policies to prevent the reset use.

Before you begin

  • If you added a Google Account to the mobile computer, make sure you have your Google username and password associated with the computer. If you do not have the username and password, you will not be able to use the mobile computer after the reset. This is a security measure that prevents unauthorized users from using the device if they try a Full factory reset.
  • If you did not add a Google Account to the mobile computer, the extra security level is not enabled and you will not need a Google username and password.
  • If you recently reset your Google Account password, wait 24 hours before performing an Enterprise data reset.
  • Connect the computer to an external power source or make sure you have a full battery charge.
  • Make sure you have an Internet connection.

Factory Reset the Mobile Computer – From the Operating System

  1. Swipe up from the bottom of the home screen to access all applications.
  2. Select Settings > System > Reset Options.
  3. Tap Erase All Data (Factory Reset)
  4. Tap Reset Phone.
  5. If prompted, type your screen lock security patter, PIN, or password, and tap Next.
  6. Tap Erase Everything. A message appears informing you an Enterprise Data Reset is being performed.

Terminal will reboot.

Factory Reset the Mobile Computer – From the Bootloader/Recovery Mode

  1. Press and hold the Power Button.
  2. From the menu that will appear on the screen select to Power Off.
  3. With the device off press and hold the Volume Down button, while doing so press the Power button.
  4. Once the screen powers on release the Power button, this will prompt the Recovery Mode menu.
  5. Use The Volume Down and Volume Up buttons to select Full Factory Reset.
  6. Use the Power button to confirm the action.

Terminal will reboot.

Honeywell CT45 CT45XP SKU’s

  • CT45-L1N-27D120G CT45, WWAN, Memory: 4GB/64GB, Display: 5 inch 1280×720 HD, Scanning: S0703, Camera: 13MP/8MP, Dual SIM (Nano), IEEE 802.11 a/b/g/n/ac/r/k/mc, Bluetooth 5.1, Android GMS, Metal battery latch button, USB 3.0 Type C, PTT
  • CT45-L0N-28D100G CT45, WLAN, Memory: 4GB/64GB, Display: 5 inch 1280×720 HD, Scanning: FlexRange, Camera: 13MP/8MP, IEEE 802.11 a/b/g/n/ac/r/k/mc, Bluetooth 5.1, Android GMS, Metal battery latch button, Audio jack, USB 3.0 Type C, PTT
  • CT45-L1N-28D120G CT45, WWAN, Memory: 4GB/64GB, Display: 5 inch 1280×720 HD, Scanning: FlexRange, Camera: 13MP/8MP, IEEE 802.11 a/b/g/n/ac/r/k/mc, Bluetooth 5.1, Android GMS, Metal battery latch button, USB 3.0 Type C, PTT
  • CT45-L0N-27D100G CT45, WLAN, Memory: 4GB/64GB, Display: 5 inch 1280×720 HD, Scanning: S0703, Camera: 13MP/8MP; IEEE 802.11 a/b/g/n/ac/r/k/mc, Bluetooth 5.1, Android GMS, Metal battery latch button, Audio jack, USB 3.0 Type C, PTT
  • CT45P-X0N-37D100G CT45XP, WLAN, Memory: 6GB/64GB, Display: 5 inch 1920×1080 Full HD, Scanning: S0703, Camera: 13MP/8MP. IEEE 802.11 a/b/g/n/ac/r/k/mc/ax, 2×2 MIMO, Bluetooth 5.1 & 2nd BLE, Android GMS, Battery Warm Swap, Audio jack, USB 3.0 Type C, PTT
  • CT45P-X0N-38D100G CT45XP, WLAN, Memory: 6GB/64GB, Display: 5 inch 1920×1080 Full HD, Scanning: FlexRange, Camera: 13MP/8MP. IEEE 802.11 a/b/g/n/ac/r/k/mc/ax, 2×2 MIMO, Bluetooth 5.1 & 2nd BLE, Android GMS, Battery Warm Swap, Audio jack, USB 3.0 Type C, PTT
  • CT45P-L1N-37D1E0G CT45XP, WWAN, Memory: 6GB/64GB, Display: 5 inch 1920×1080 Full HD, Scanning: S0703, Camera: 13MP/8MP. IEEE 802.11 a/b/g/n/ac/r/k/mc, Wi-Fi-ax ready, eSIM & Nano SIM, Bluetooth 5.1 & 2nd BLE, Android GMS, Battery Warm Swap, USB 3.0 Type C, PTT
  • CT45P-L1N-38D1E0G CT45XP, WWAN, Memory: 6GB/64GB, Display: 5 inch 1920×1080 Full HD, Scanning: FlexRange, Camera: 13MP/8MP. IEEE 802.11 a/b/g/n/ac/r/k/mc, Wi-Fi-ax ready, eSIM & Nano SIM, Bluetooth 5.1 & 2nd BLE, Android GMS, Battery Warm Swap, USB 3.0 Type C, PTT
  • CT45P-L1N-37D120G CT45XP, WWAN, Memory: 6GB/64GB, Display: 5 inch 1920×1080 Full HD, Scanning: S0703, Camera: 13MP/8MP. IEEE 802.11 a/b/g/n/ac/r/k/mc, Wi-Fi-ax ready, Dual Nano SIM, Bluetooth 5.1 & 2nd BLE, Android GMS, Battery Warm Swap, USB 3.0 Type C, PTT
  • CT45P-L1N-38D120G CT45XP, WWAN, Memory: 6GB/64GB, Display: 5 inch 1920×1080 Full HD, Scanning: FlexRange, Camera: 13MP/8MP. IEEE 802.11 a/b/g/n/ac/r/k/mc, Wi-Fi-ax ready, Dual Nano SIM, Bluetooth 5.1 & 2nd BLE, Android GMS, Battery Warm Swap, USB 3.0 Type C, PTT
